SIP 22 TON Air Floor Jack
SIP 22 TON Air Floor Jack
Couldn't load pickup availability
Full Specification
The SIP 22 Ton Air Floor Jack is built for heavy-duty lifting of a range of vehicle types, including vans, trucks, buses, construction equipment and agricultural machinery, offering dependable and reliable support across all demanding applications.
This compressed air-controlled jack is ideal for professional garages and workshops.
A low-profile design offer easier access under vehicles, particularly those with lower clearances. In conjunction with the large non-marking rubber wheels, this jack is easy to manoeuvre and positioning regardless of the vehicle type.

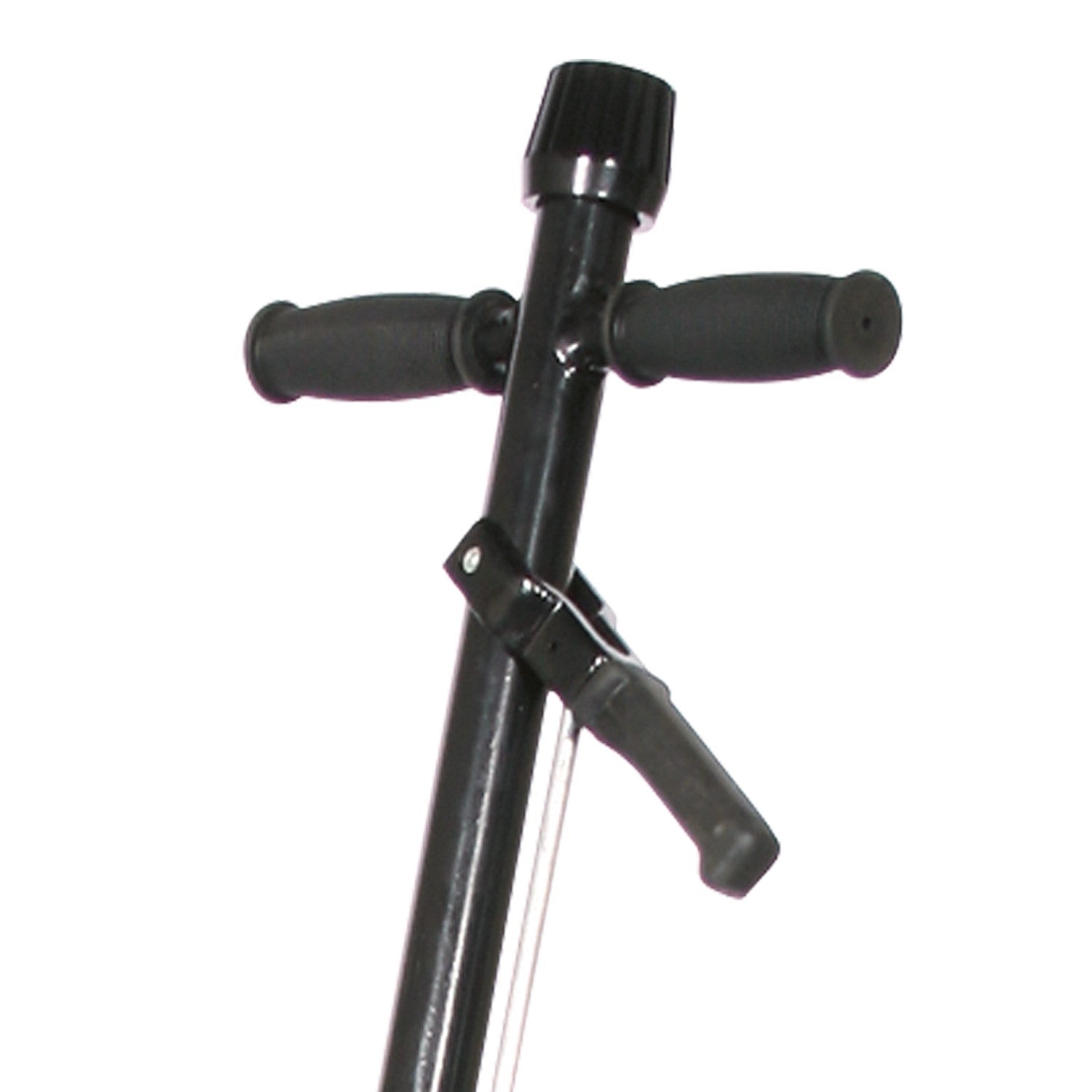

For optimal user safety, the 22 TON Air Floor Jack is built with a release knob to help lower any vehicles slowly in a controlled manor, and handle lock to prevent the jack from accidentally disengaging, reducing the risk to the operator.
- 22 TON maximum weight capacity
- 230mm to 555mm adjustable lifting height
- 115mm screw extension for added versatility
- Manufactured from heavy-duty and durable steel
- Low-profile design for easier under-vehicle access
- Large non-marking rubber wheels for easy movement
- Built-in release knob and integrated handle lock

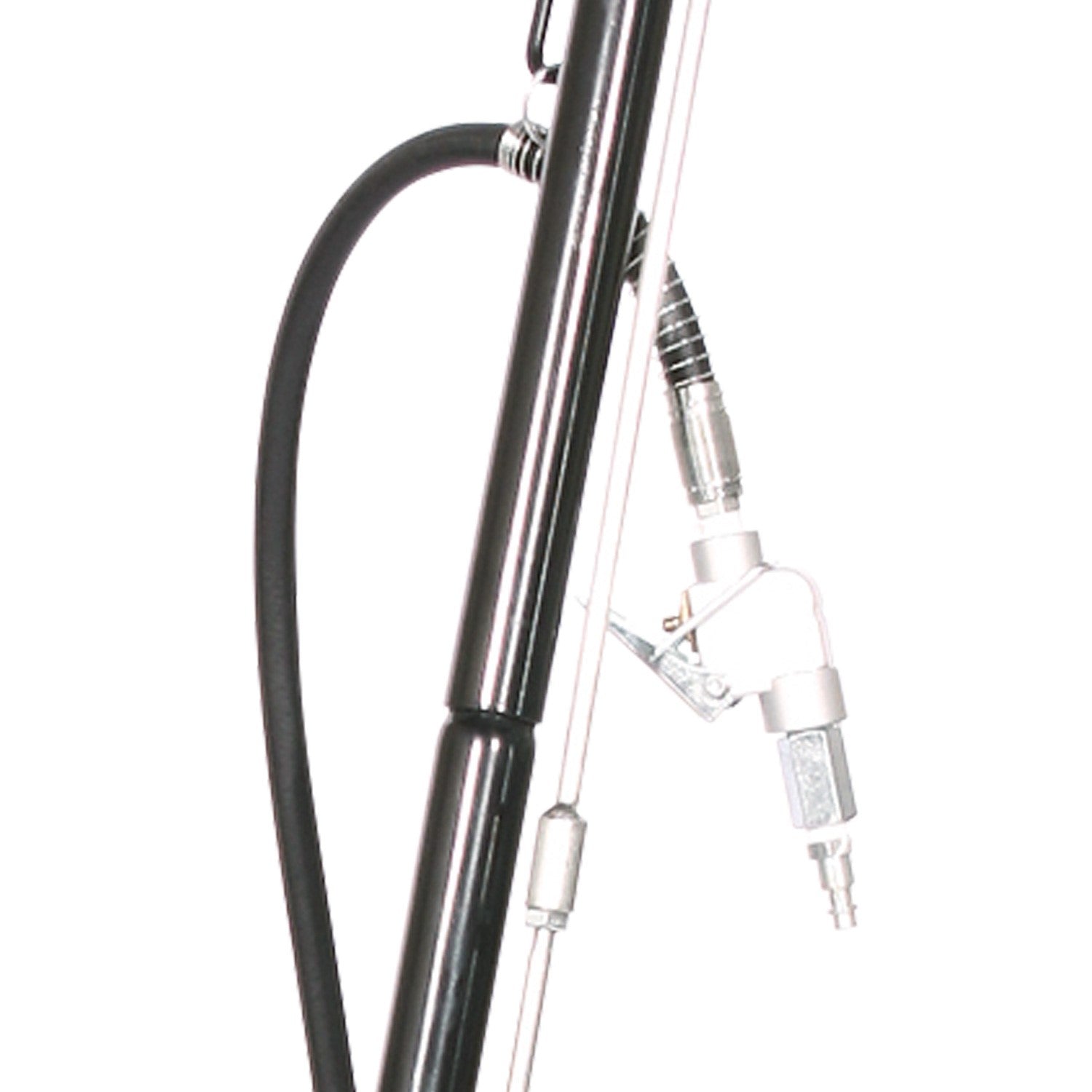

- Integrated air line hook and air control valve
- 9.5CFM (269ltr/min) maximum air consumption
- 102psi (7bar) to 145psi (10bar) pressure
- SIP 2-Year Standard Silver Warranty
Technical Information
| ITEM NO. | 03643 |
| Weight Capacity: | 22 TON |
| Min. Lifting Height: | 230mm |
| Max. Lifting Height: | 555mm |
| Ram Stroke: | 120mm |
| Screw Extension: | 115mm |
| Working Pressure: | 102psi (7bar) - 145psi (10bar) |
| Av. Air Consumption: | 9.50CFM (269ltr/min) |
| Adaptor Size: | Ø 110mm x 50mm Ø 50mm x 50mm Ø 20mm x 50mm Ø 20mm x 70mm |
| Net Weight: | 45.90kg |
| Gross Weight: | 49.90kg |
| Product Dimensions: | |
| Packaged Dimensions: | 280(H) x 360(W) x 670mm(D) |
