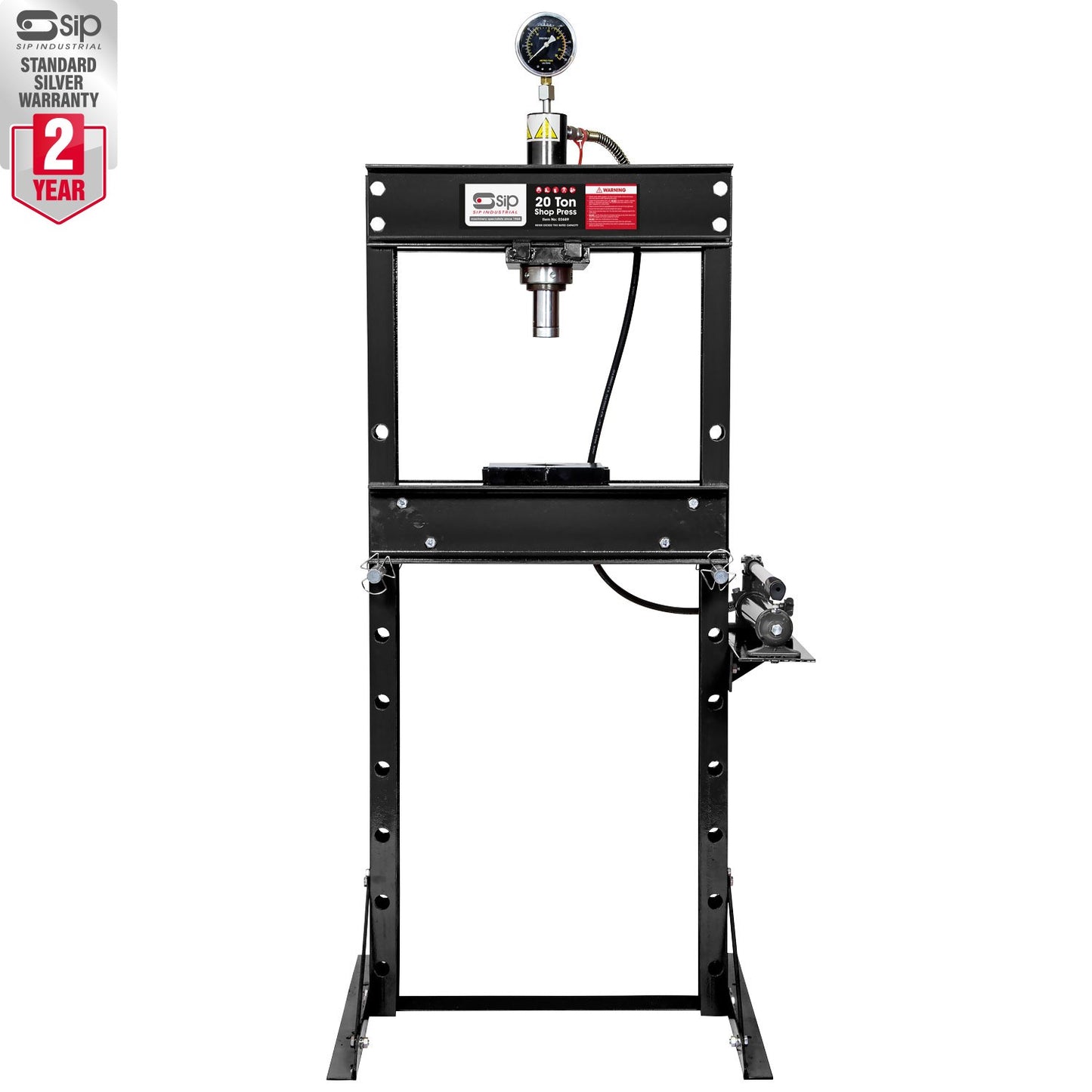

SIP 20 TON Shop Floor Press
SIP 20 TON Shop Floor Press
Couldn't load pickup availability
Full Specification
The SIP 20 TON Shop Floor Press is perfect for a variety of applications in garage or workshop applications, offering heavy-duty manually-operated pressing performance within a robust and exceptionally durable frame, plus a fully adjustable workbed.
This press can be used for pressing bearings, bushings or sleeves, bending or shaping metal rods or bars, straightening bent metal, bonding and riveting, punching holes in sheets and plates, or forming sheets into various shapes. It is particularly well-suited for the removal and installation of bearings, wrist pins, universal joints and pulleys.

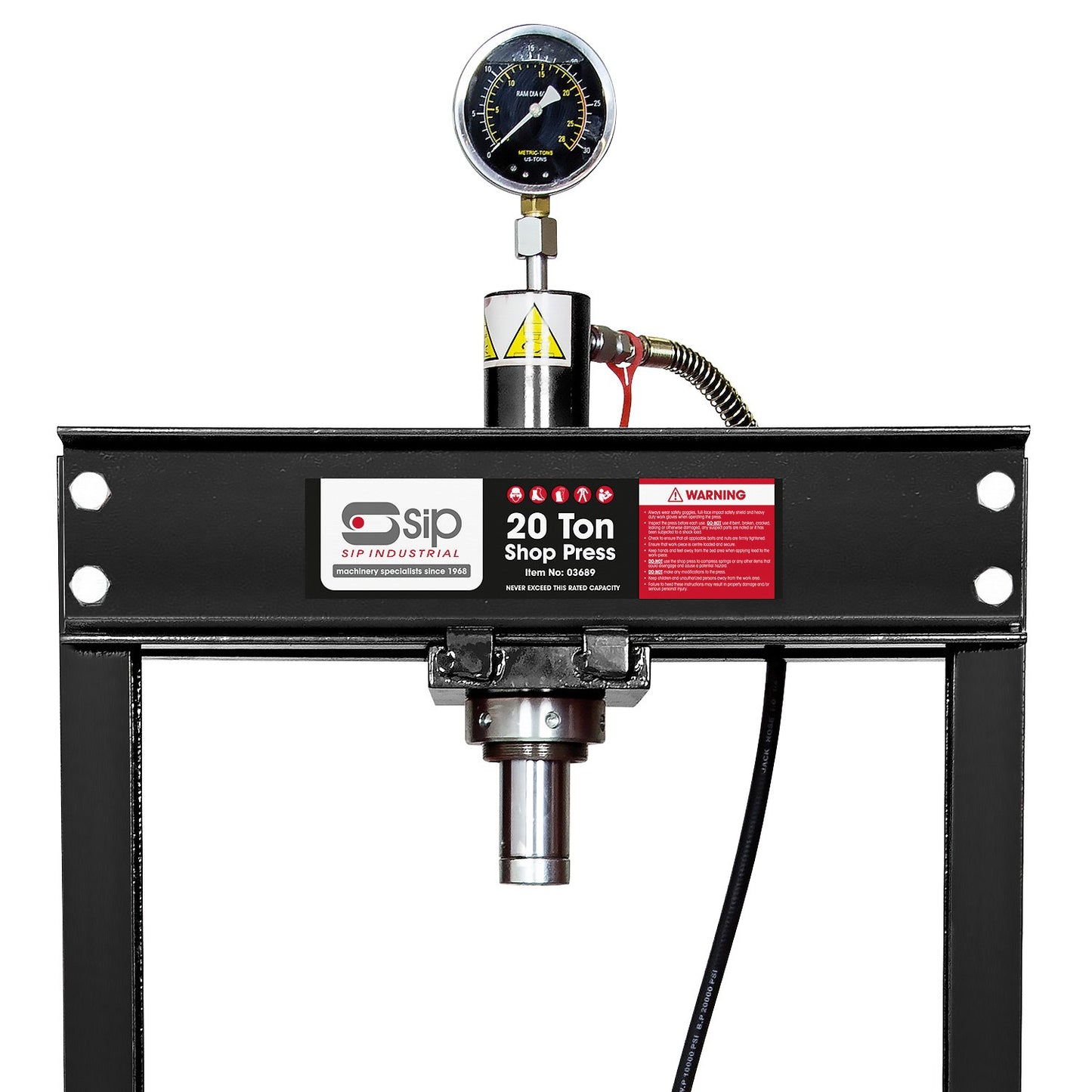

A glycerine-filled manometer helps protect the gauge and provides higher accuracy readings, plus durability against less-than-ideal conditions and corrosion.
- 20 TON floor-standing manually-operated press
- 29.5mm to 989.9mm work range and a 185mm ram stroke
- Heavy-duty steel frame for increased durability
- Fully adjustable workbed for improved versatility
- Suitable for pressing, bending, bonding and straightening
- Bearing, wrist pin, universal joint and pulley removal
- Glycerine-filled manometer for durability
- SIP 2-Year Standard Silver Warranty
Technical Information
| ITEM NO. | 03689 |
| Press Capacity: | 20 TON |
| Press Type: | FLOOR |
| Press Operation: | Manual |
| Working Range: | 29.5mm - 989.5mm |
| Press Height: | 770mm |
| Press Width: | 700mm |
| Press Depth: | 700mm |
| Ram Stroke: | 185mm |
| Bed Width: | 543mm |
| Net Weight: | 78.20kg 33.00kg |
| Gross Weight: | 79.70kg 34.50kg |
| Product Dimensions: | 325(H) x 340(W) x 340mm(D) |
| Packaged Dimensions: | 1530(H) x 200(W) x 130mm(D) (P1) 730(H) x 250(W) x 170mm(D) (P2) |
